7443340680
Manufacturer:
Wurth Electronics
Mfr.Part #:
7443340680
Datasheet:
Description:

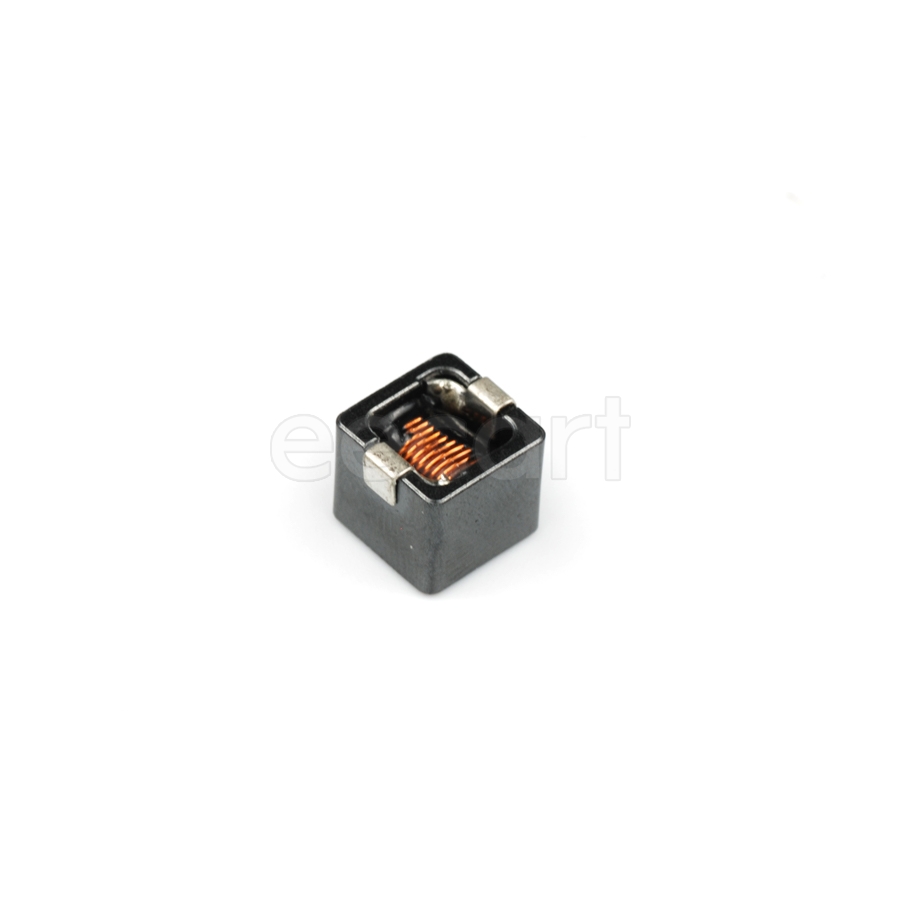

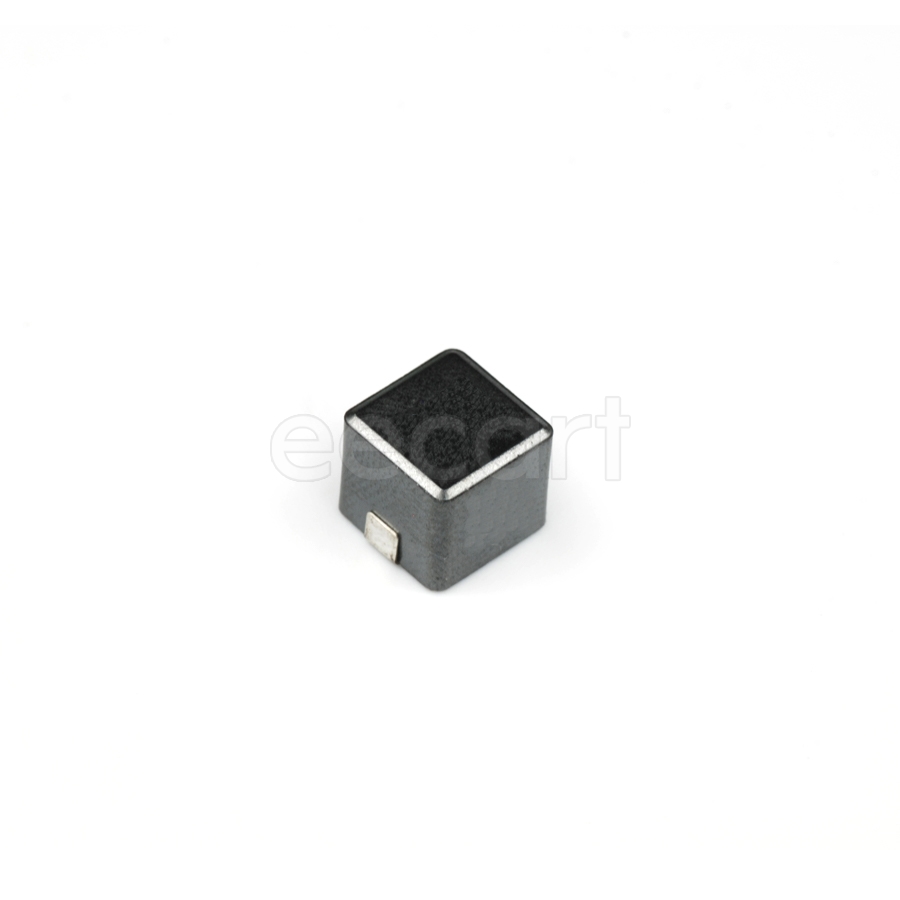

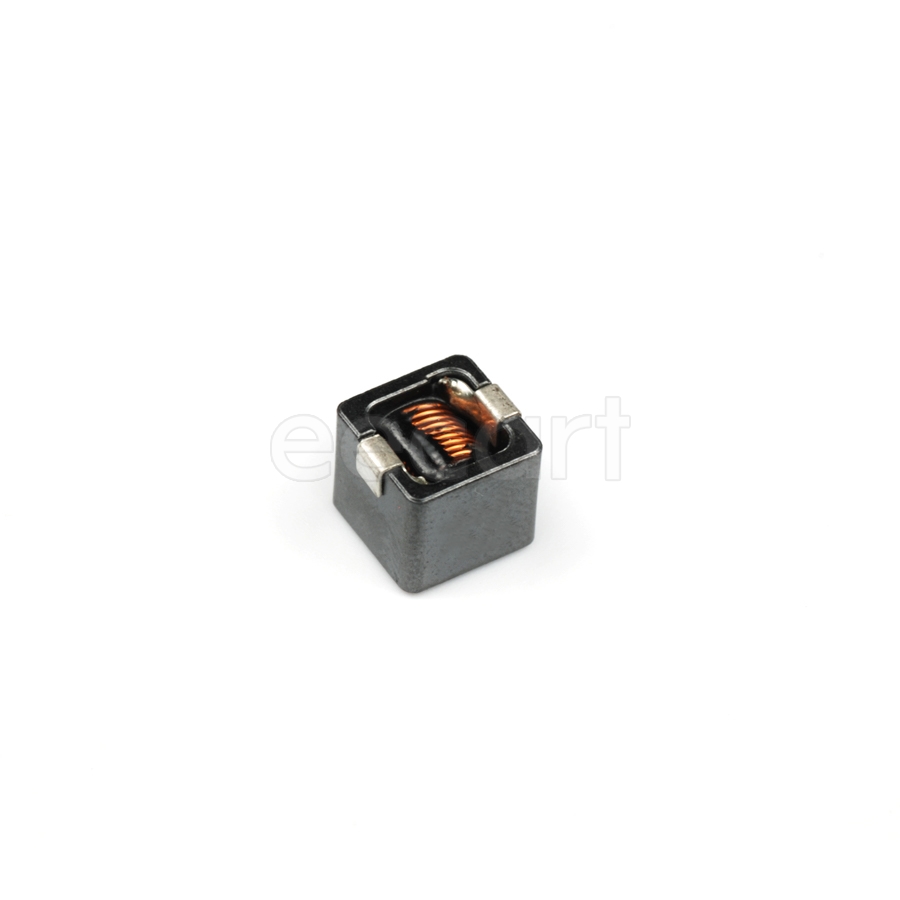

Fixed Inductors 8.40mmL×7.90mmW×7.50mmH SMD/SMT 6.8 µH 20 % 5.5 A 22.2 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 7.5 mm |
| Length | 8.4074 mm |
| Width | 7.8994 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 7.2 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 37 MHz |
| Current Rating | 5.5 A |
| DC Resistance (DCR) | 22.2 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 6.8 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 5.5 A |
| inductance tolerance | 20 % |
| Max DC Current | 5.5 A |
| Series Resistance | 22.2 mΩ |
| Saturation Current | 7.5 A |
| Type | Wirewound |
Stock: 310
Distributors
pcbx
pcbxUnit Price$1.33914
Ext.Price$1.33914
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.33914 | $1.33914 |
| 10 | $1.30146 | $13.01460 |
| 25 | $1.26657 | $31.66425 |
| 50 | $1.23261 | $61.63050 |
| 100 | $1.18882 | $118.88200 |
| 300 | $1.03171 | $309.51300 |
| 500 | $0.89537 | $447.68500 |
